MACHINERY ELABORATION OF FROZEN PRODUCT
Boiling
Boiling stockpots
DESCRIPTIONMachinery designed for crustacean boiling by immersion in water. The product is submerged in baskets in the tank helped by a hoist. The heating of water may be carried out by steam boiler or gas burners, depending on the production circumstances.
TECHNICAL FEATURES
Adaptable dimensions to the production needs. Structure built in stainless steel AISI 316 and with high oxidation performance stainless steel. Lagged and covered with stainless steel sheet. Automated temperature control.
Water cooker continued
DESCRIPTIONMachinery designed for crustacean boiling by continued immersion in water. The heating of water may be carried out by steam boiler or electrical resistances, depending on the production circumstances.
TECHNICAL FEATURES
Adaptable dimensions to the production needs. Structure built in stainless steel AISI 316 or 304. Lagged and covered with stainless steel sheet. Driven by an electrical engine-reducer of direct coupling. Polypropylene modular bands. Electrical heating resistances. Automated temperature control.
Defrost
Defrosting by immersion
DESCRIPTIONMachinery designed to defrost crustacean by means of product immersion at controlled temperature. The product is transported inside the water tank at suitable speed and temperature, to achieve optimal defrosting.
TECHNICAL FEATURES
Adaptable dimensions to the production needs. Structure built in stainless steel AISI 316. Thermal tank isolation. Driven by an electrical engine-reducer of direct coupling. Speed regulation by means of a frequency shifter. Belt of folded metal plates.
Glazing
Glazing by sprinkler
DESCRIPTIONMachinery designed for glazing small crustacean. The product displaces through a modular belt, which submerges the product a few centimeters, provided with sprinklers in the upper part that spray the water, giving the product a homogeneous glazing. Provided with an autonomous cooling equipment, where the temperature and speed parameters are adjustable depending on the processed product.
TECHNICAL FEATURES
Adaptable dimensions to the production needs. Structure built in stainless steel AISI 316 or 304. Thermal isolation. Driven by an electrical engine-reducer of direct coupling. Speed regulation by means of a frequency shifter. Modular Polyethylene belt. Recirculation of water by means of a motorized pump. Temperature regulation by means of an autonomous cooling equipment.
Glazing by immersion
DESCRIPTIONMachinery designed for glazing crustacean by immersion. The product is submerged in a water blancher at controlled temperature and moves on a modular band all around the blancher. Is provided with to water cascades in the upper part which achieve a more homogeneous glazing of the product. Provided with an autonomous cooling equipment, where the temperature and speed parameters are adjustable depending on the processed product.
TECHNICAL FEATURES
Adaptable dimensions to the production needs. Structure built in stainless steel AISI 316 or 304. Thermal isolation. Driven by an electrical engine-reducer of direct coupling. Speed regulation by means of a frequency shifter. Modular Polyethylene belt. Recirculation of water by means of a motorized pump. Temperature regulation by means of an autonomous cooling equipment.
Rupture
Block breaker
DESCRIPTIONMachinery designed to separate the frozen product in blocks. The frozen blocks are broken by two hydraulic pistons that give pressure to the block, provoking the rupture. We have two models available, depending on the processed product, double piston or single piston.
TECHNICAL FEATURES
Adaptable dimensions to the production needs. Structure built in stainless steel AISI 316 or 304. Driven by hydraulic pump with electrical engine. Hydraulic pistons adapted to the required force.
Weighing
Weighing platform
DESCRIPTIONMachinery designed for weighing of products, the platforms are tailored to the customer's need.
TECHNICAL FEATURES
Adaptable dimensions to the production needs. Structure built in stainless steel AISI 316 or 304. Weighing cell. Electronic dosage display.
Weighing scale cart
DESCRIPTIONMachinery designed for weighing of products, the platforms are tailored to the customer's need.
TECHNICAL FEATURES
Adaptable dimensions to the production needs. Structure built in stainless steel AISI 316 or 304. Weighing cell. Electronic dosage display.
Transport
Load supplier belt
DESCRIPTIONMachinery designed to supply the product in the different required processes.
TECHNICAL FEATURES
Adaptable dimensions to the production needs. Innovative design that allows optimized belt cleanliness. Structure built in stainless steel AISI 316 or 304. Driven by an electrical engine-reducer of direct coupling. Speed regulation by means of an electrical frequency shifter. Different belts according to the needs required by the product.
Reviser belt
DESCRIPTIONMachinery designed for the revision of products and discarding of products not suitable for commercialization.
TECHNICAL FEATURES
Adaptable dimensions to the production needs. Innovative design that allows optimized belt cleanliness. Structure built in stainless steel AISI 316 or 304. Driven by an electrical engine-reducer of direct coupling. Speed regulation by means of an electrical frequency shifter. Different belts according to the needs required by the product.
Conveyer belt
DESCRIPTIONMachinery designed for transport of products, the platforms are tailored to production need.
TECHNICAL FEATURES
Adaptable dimensions to the production needs. Innovative design that allows optimized belt cleanliness. Structure built in stainless steel AISI 316 or 304. Driven by an electrical engine-reducer of direct coupling. Speed regulation by means of an electrical frequency shifter. Different belts according to the needs required by the product.
Load supply blancher
DESCRIPTIONMachinery designed to supply the product in the different required processes.
TECHNICAL FEATURES
Adaptable dimensions to the production needs. Innovative design that allows optimized belt cleanliness. Structure built in stainless steel AISI 316 or 304. Driven by an electrical engine-reducer of direct coupling. Speed regulation by means of an electrical frequency shifter. Belt of folded metal plates.
Bin turner
DESCRIPTIONMachinery designed to turn the bins, by means of a hydraulic piston which lifts the container and tilts the product.
TECHNICAL FEATURES
Adaptable dimensions to the production needs. Structure built in stainless steel AISI 316 or 304. Driven by hydraulic pump with electrical engine. Hydraulic piston adjusted to the required weight.
Roller belt
DESCRIPTIONMachinery designed for transport of product, by means of a set of rollers.
TECHNICAL FEATURES
Adaptable dimensions to the production needs. Structure built in stainless steel AISI 316 or 304. Rollers from different material according to the required process.
Filtering
Hidrane water filter
DESCRIPTIONMachinery designed for water Filtering and separating solid waste, by means of a cascade filter.
TECHNICAL FEATURES
Adaptable dimensions to the filtering needs. Structure built in stainless steel AISI 316. Hidrane filter according to the required caliber.
Water belt filter
DESCRIPTIONMachinery designed for water filtering and separating solid waste, by means of special belt which removes the solid waste, and allows only already filtered water to pass.
TECHNICAL FEATURES
Adaptable dimensions to the filtering needs. Structure built in stainless steel AISI 316. Driven by an electrical engine-reducer of direct coupling. Speed regulation by means of an electrical frequency shifter. Belt filter.

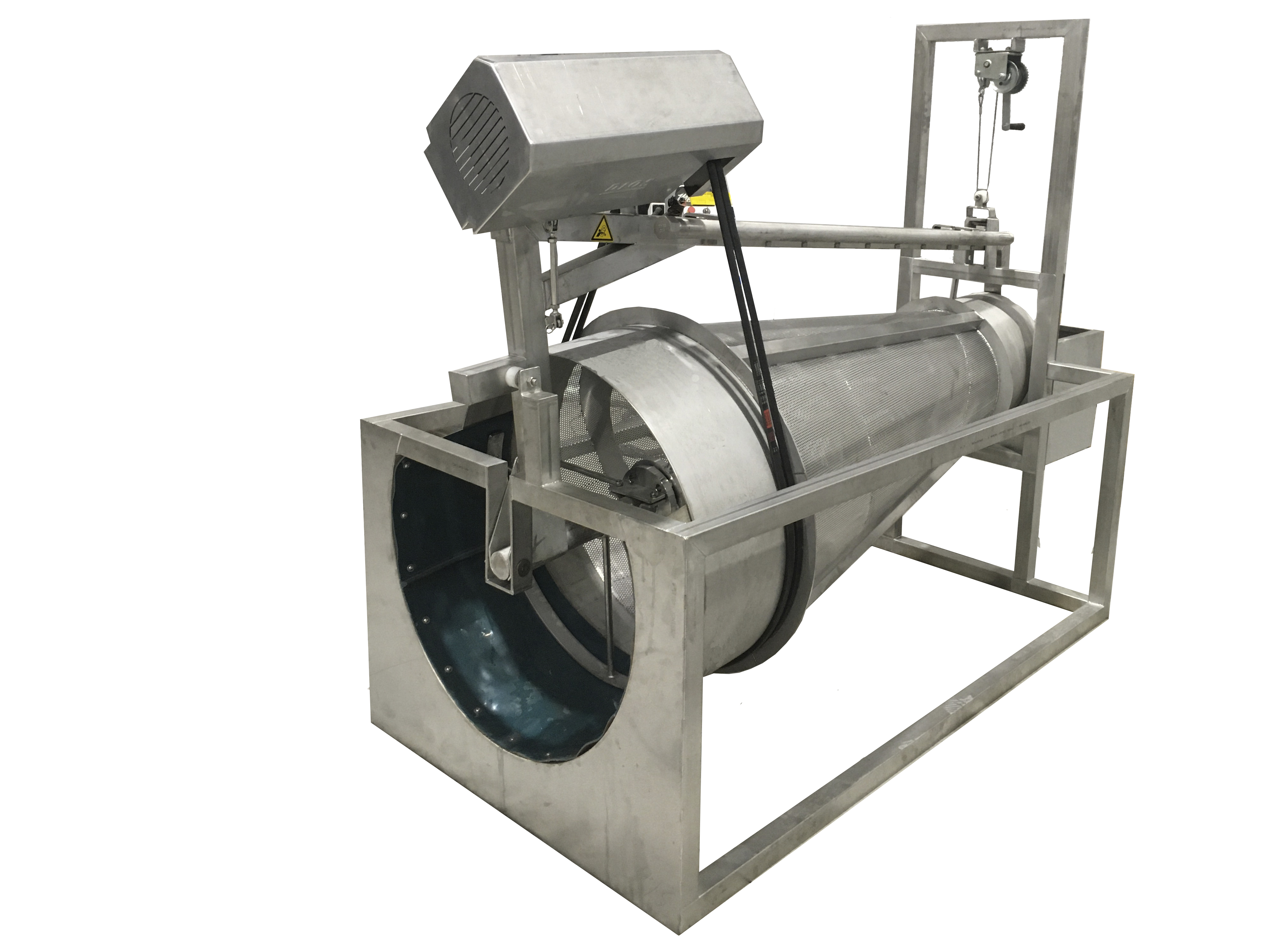

Rotating water filter
DESCRIPTIONMachinery designed for water Filtering and separating solid waste, by means of filter drum which removes the solid waste, and allows only already filtered water to pass.
TECHNICAL FEATURES
Adaptable dimensions to the filtering needs. Structure built in stainless steel AISI 316. Driven by an electrical engine-reducer. Speed regulation by means of a frequency shifter. Filter drum.
